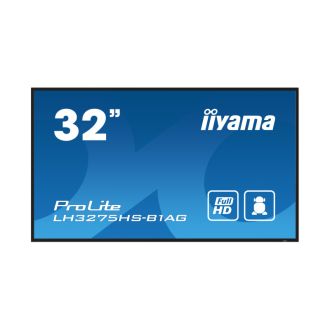

IIYAMA 32" LH3275HS-B1AG FHD (1920x1080) IPS Signage 24/7, 500 cd/m2, 1200:1, Android OS, E-Share, iiSignage2

32" Full HD Professional Digital Signage 24/7 display featuring Android OS and FailOver

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3275HS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 31.5", 80cm
Panel IPS, AG coated glass, matte finish, haze 25%
Native resolution 1920 x 1080 @60Hz (2.1 Megapixels, Full HD)
Aspect ratio 16:9
Panel brightness 500 cd/m2
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 698.4 x 392.85mm, 27.5 x 15.5"
Bezel width (sides, top, bottom) 11.9mm, 11.9mm, 11.9mm
Pixel pitch 0.364mm
Bezel colour and finish black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x2 (v.2.0, max. 1920x1080 @60Hz, ARC on HDMI #2)
DisplayPort x1 (v.1.2, max. 1920x1080 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
Audio output Mini jack x1
Speakers 2 x 10W
HDCP v.2.2
USB ports x2 (v.2.0)
FEATURES
Integrated software Android 11 OS, iiSignage2, FailOver, EShare
WiFi yes (Built-in, 802.11ac)
Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, Group ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced option reset)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 200 x 200mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 44.000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power, HDMI, RS-232c
Guides quick start guide, safety guide
Other Stickers for screw holes, AC switch cover, screw, cable clips
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 46W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead, Lead monoxide
DIMENSIONS / WEIGHT
Product dimensions W x H x D 725.5 x 421.8 x 54mm
Box dimensions W x H x D 824 x 554 x 119mm
Weight (without box) 5.2kg
Weight (with box) 7.3kg
EAN code 4948570124220
